Lino P5-1 Point Laser Level

Technical data
Range: up to 30m
Leveling accuracy: ± 0.2 mm/m
Self-leveling range: ± 4°
Number of laser points: 5
Beam direction: up, down, forward, right, left
Laser type: 635 nm/class 2
Battery type: AA 3 x 1.5V
Operating time: up to 37 h (AA)
Protection class: IP 54
Dimensions: 110 × 60 × 100mm
Weight with batteries: 495 g

• Thread for tripod: 1/4”

One button operation
The Leica Lino P5 point laser is very easy to use. With the push of a button, it accurately projects five reference points at exact right angles to each other.

fast positioning

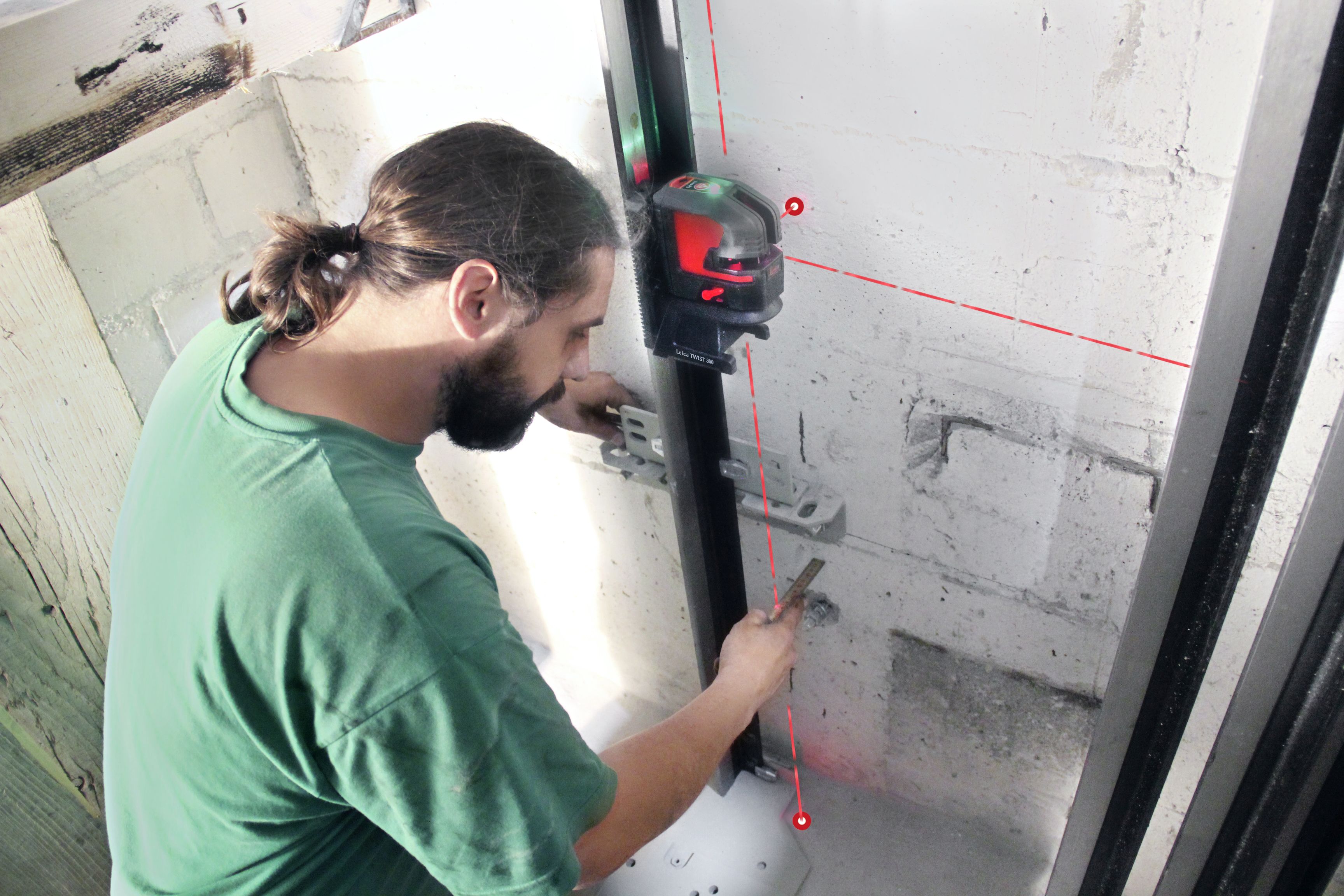

The TWIST 360 Magnetic Smart Adapter allows you to quickly attach your Leica Lino to edges, profiles, iron tubes, rails or bars, allowing you to complete your work faster. The level can rotate 360°.

self leveling
The Leica Lino P5 automatically adjusts its position if it is slightly out of level to ensure correct transfer of angles and reference points up to ±4°. The laser dots flash if the inclination is outside this limit.

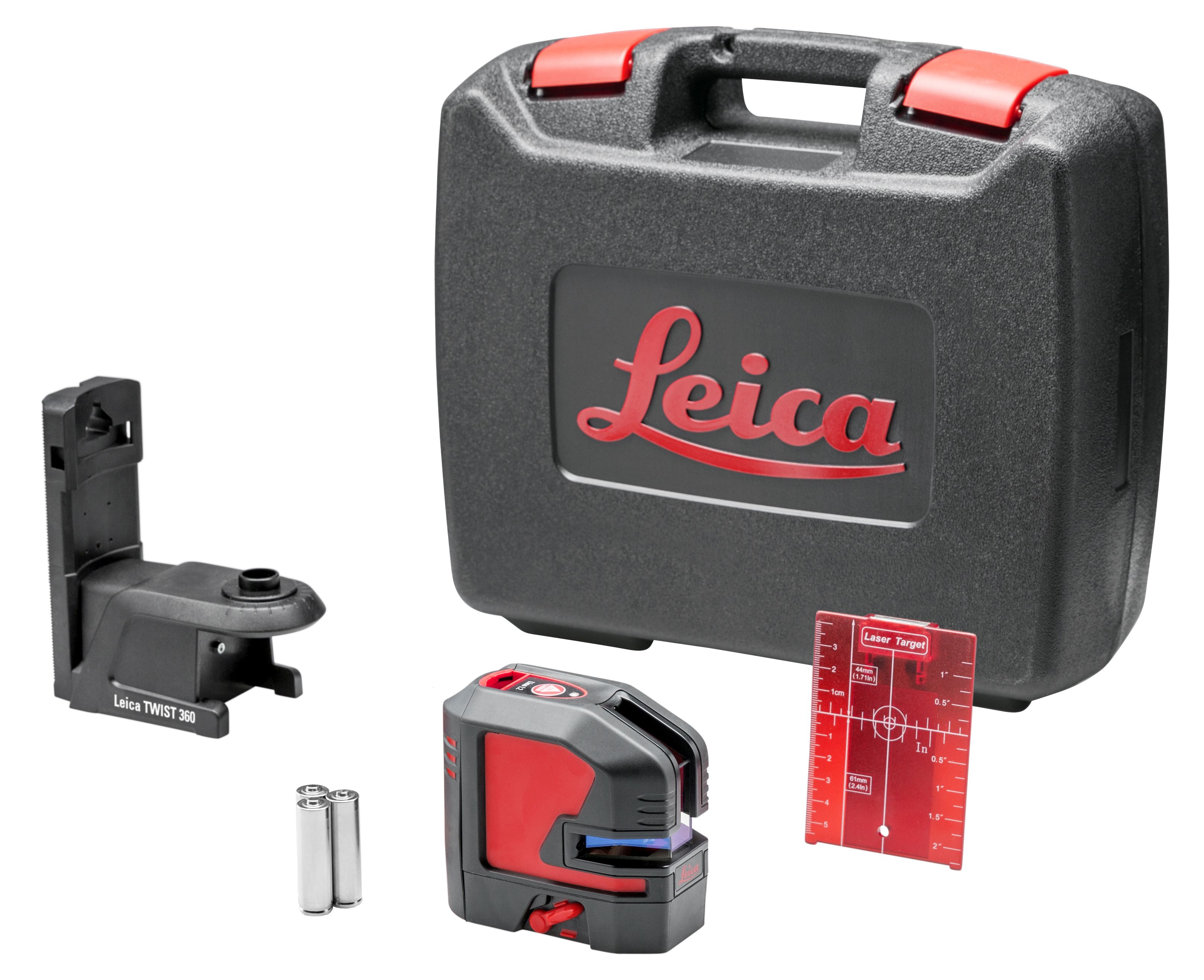

Includes:
TWIST 360 Multifunction Magnetic Adapter

• Target board

Alkaline batteries (AA type, 3 x 1.5V)
Rigid transport case
