Line and point laser level Lino L2P5-1

Technical data
Range: up to 25m
Range with receiver: laser 80 m
Leveling accuracy: ± 0.2 mm/m
Self-leveling range: ± 4°
Number of laser points: 4
Number of laser lines: 2
Beam direction: vertical, horizontal, up, down, right, left
Laser type: 635 nm/class 2
Battery type: Rechargeable lithium ion (or AA 3 x 1.5V)
Operating time: up to 44 h (Lithium ion)
Protection class: IP 54
Dimensions: 110 × 60 × 100mm
Weight with batteries: 530 g

• Thread for tripod: 1/4”

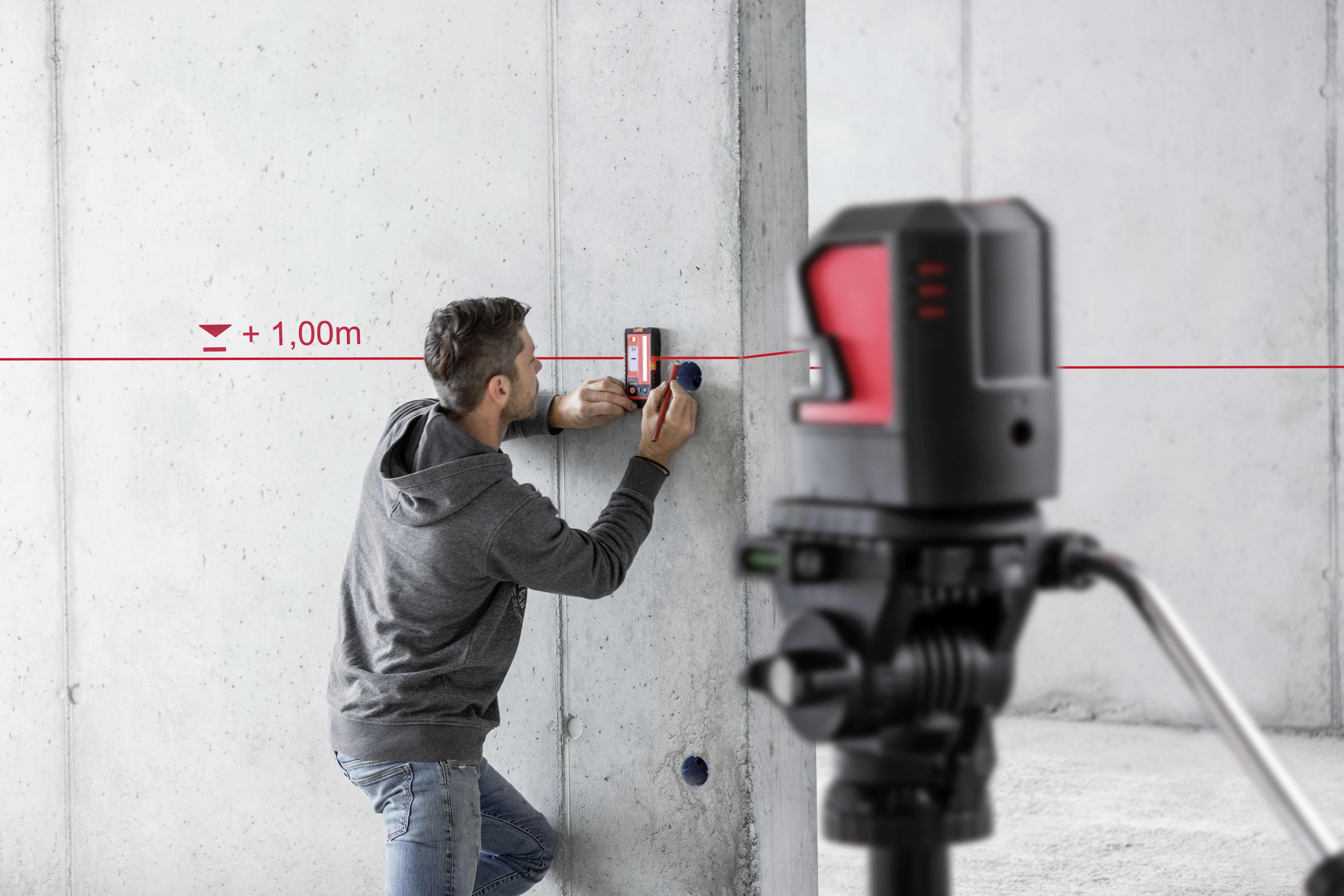

Cross lines and laser points
The Leica Lino L2P5 is a self-leveling point and line laser. Ideal for alignment tasks such as
mosaics, drywall, partitions and electrical installations, as well as projection of plumb lines, setting out or transferring measured points.

fast positioning
The TWIST 360 magnetic smart adapter allows you to quickly attach your Leica Lino to edges, profiles, tubes
of iron, rails or bars, allowing you to complete your job faster. The level can rotate 360°.

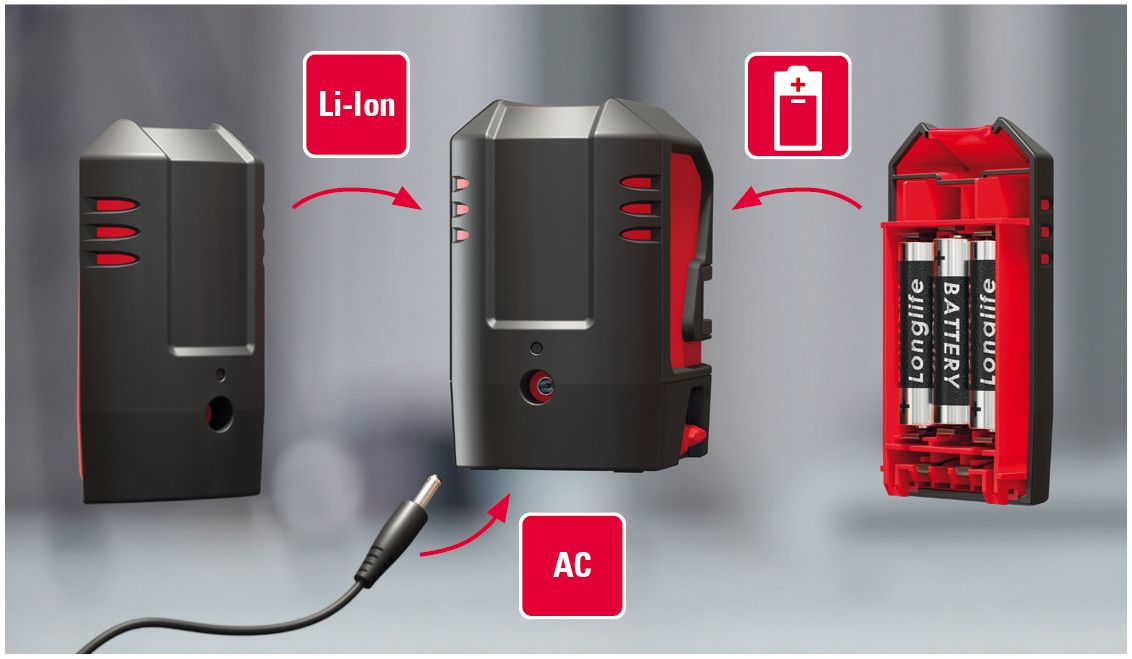

Triple feeding concept
The triple power concept of the Leica Lino L2P5-1 ensures an uninterrupted workflow. You can power your laser using the rechargeable batteries for up to 44 hours on one charge. Alternatively, you can use alkaline batteries thanks to the included battery cover or simply your charger. (Alkaline batteries not included).

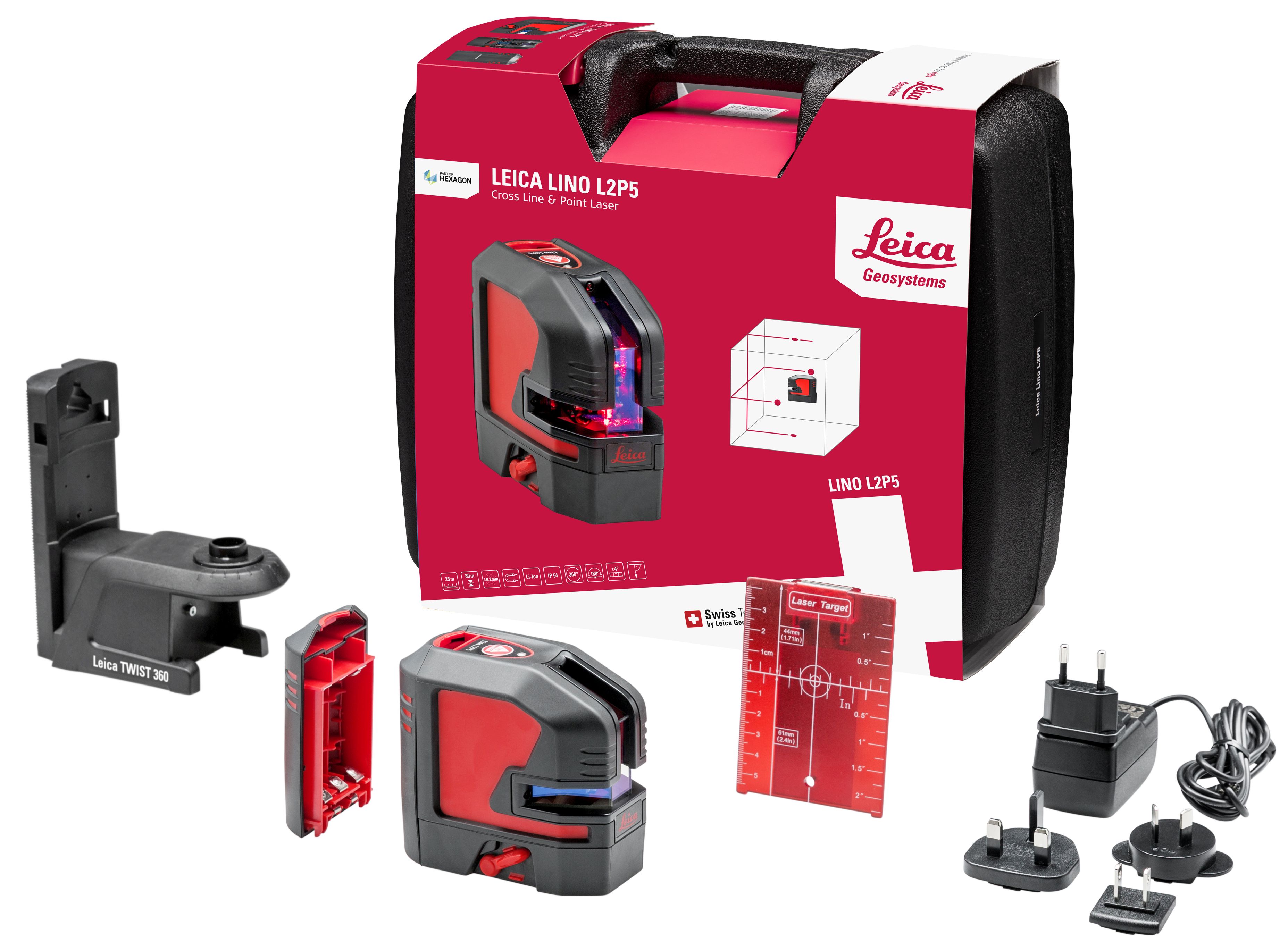

Includes:
TWIST 360 Multifunction Magnetic Adapter

• Target board

Lithium ion battery pack

• Charger
• Battery holder

Rigid transport case
